Modify Scan Panel on Item Receipt

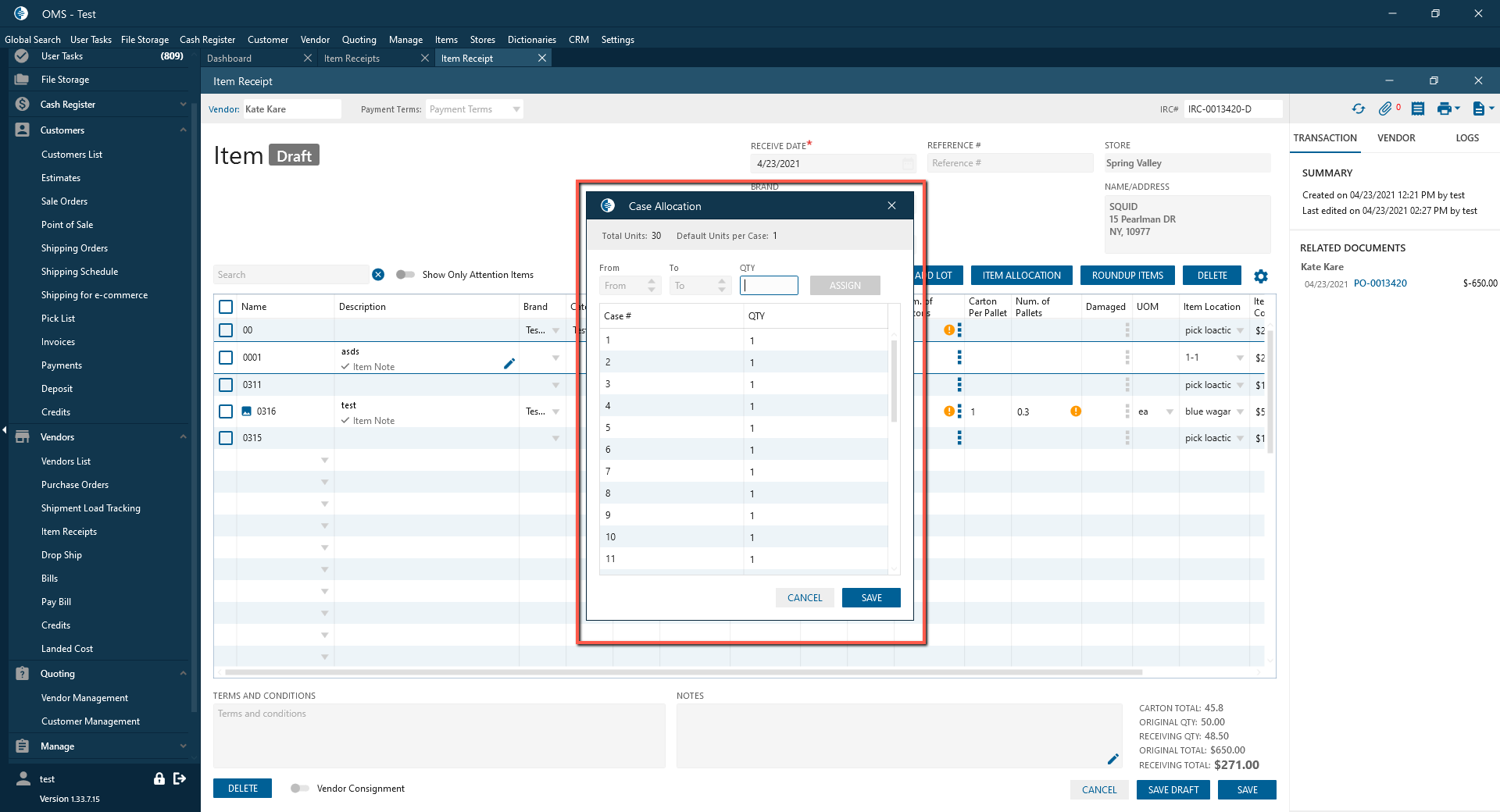

Case allocation pop-up was made bigger. And was added the ability to move cursor -> up/down using the keyboard.

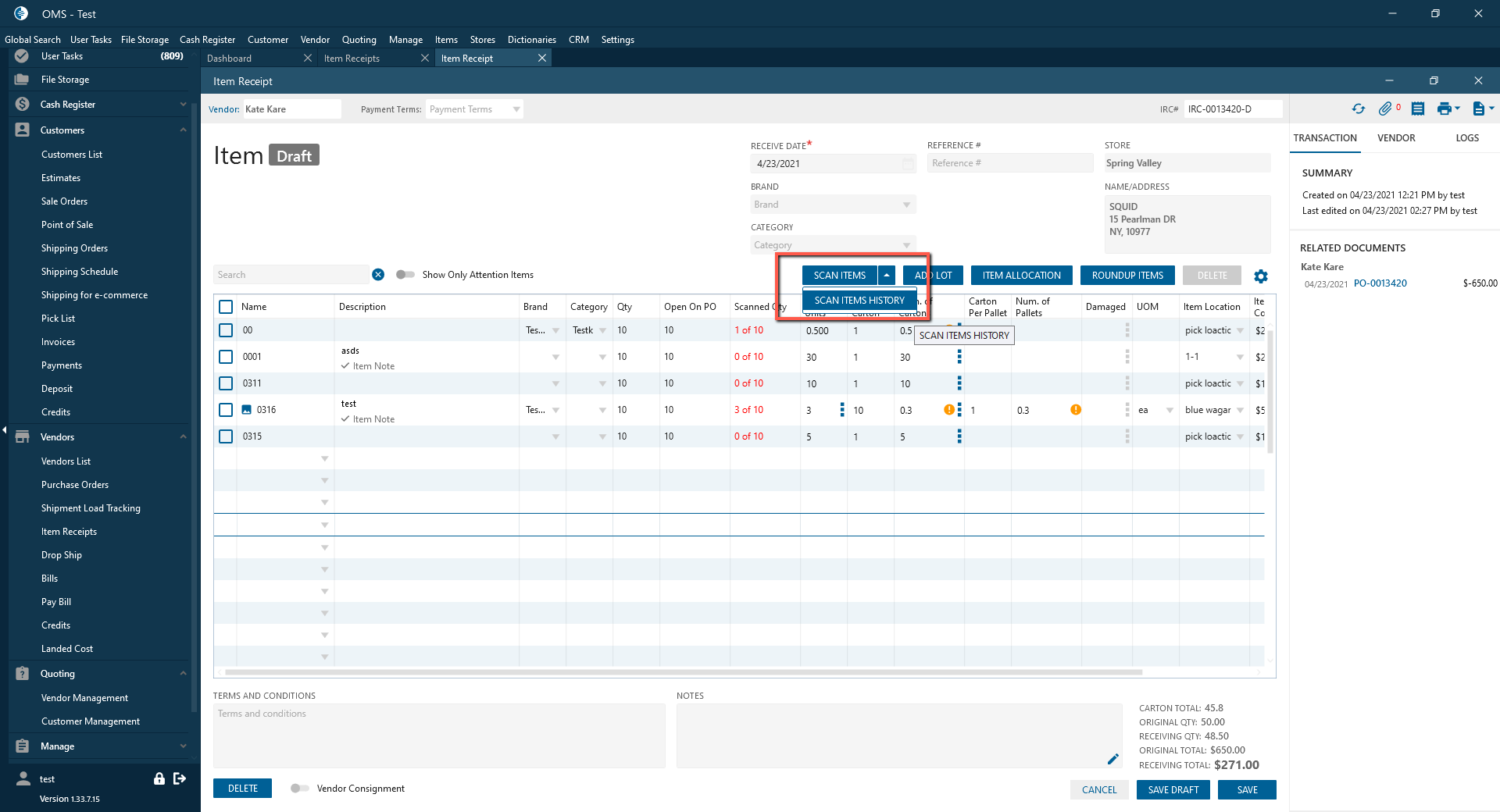

Scan items multi-button:

• Scan Item -> after clicking on the button, the new Scan Item pop-up is opened;
• Scan History -> after clicking on the button, the Scan Items panel is opened and the first tab is hidden.

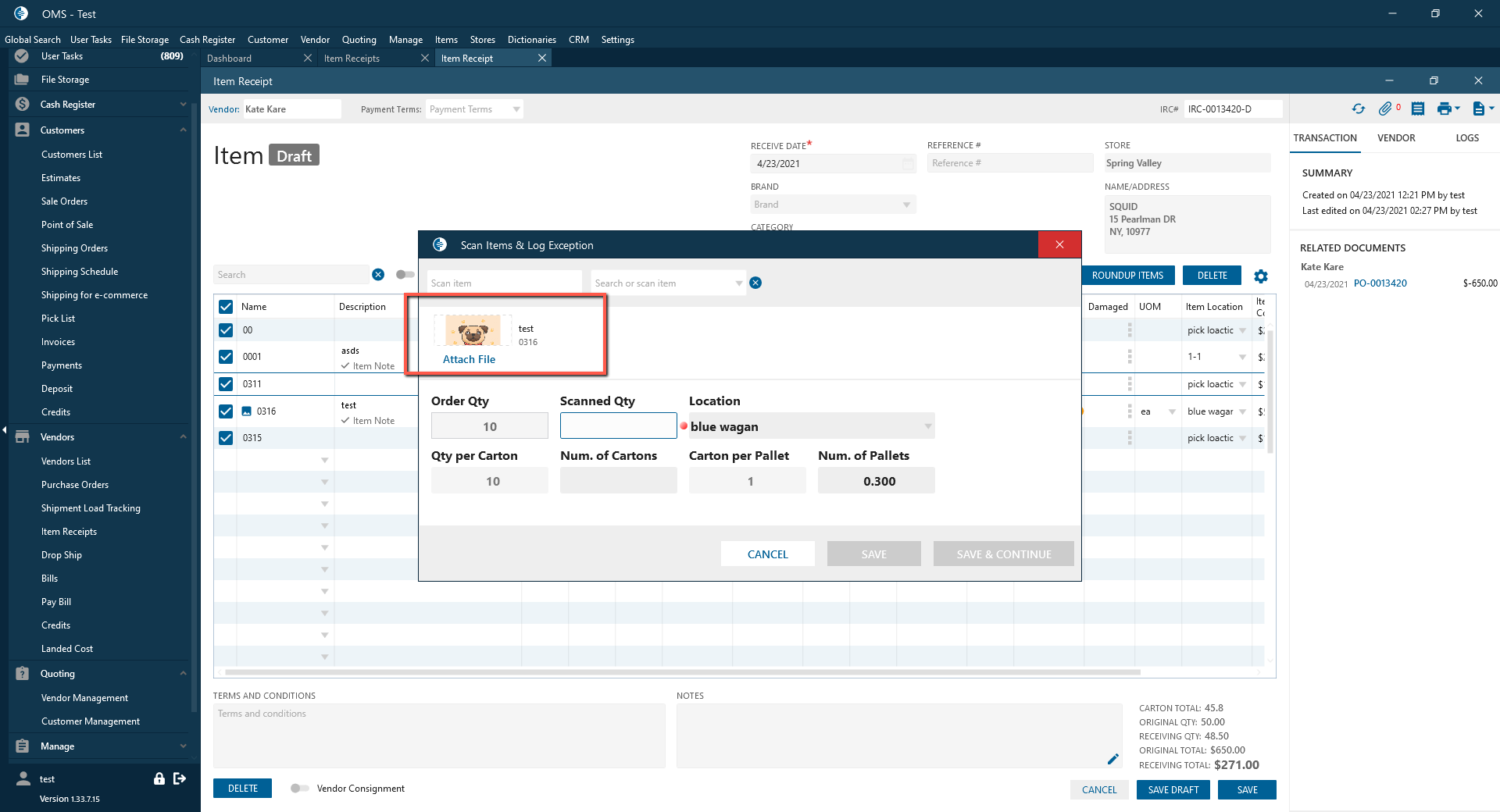

New Scan Item pop-up contains:

• Scan drop-down:
  • in focus by default;
  • once item barcode has been scanned:
    1. the barcode is automatically input into the drop-down and if:
       • was found item which is not in the IR:
         1. item isn’t added into the datagrid;

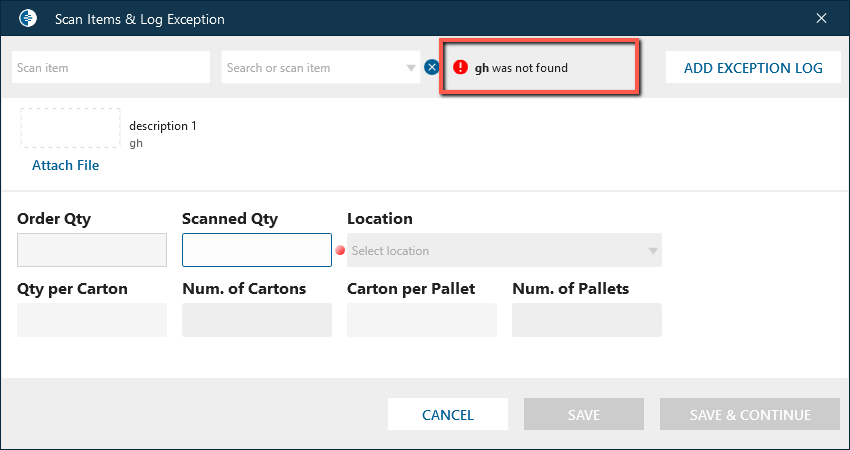

         2. message is displayed: “[Item name] was not found”;
       • was found item which is in the IR:
         1. item is added into the datagrid in the beginning of the list;
         2. scanned qty is equal “1”;
    2. the cursor and focus is back to the Search item drop-down;
    3. the barcode is automatically highlighted;
• Reset button:
  • after clicking on the search drop-down is cleared;
• Item:
  • Item Image -> if item has an image it is displayed;
  • Description -> is taken from the IR;
  • Item Name -> is taken from the IR;
• Order Qty is taken from IR;
• Scanned Qty:
  • only numbers are allowed;
  • by default equal “1”;
  • displays the scanned qty;
• Location is taken from IR;
• Qty Per carton/Num. of cartons/Cartons per Pallet/Number of pallet:
  • are calculated the same as on IR edit form;
  • once columns have been filled -> after clicking on the Apply Total Units button:
    1. all values are copied to the IR Datagrid;
    2. Qty per Carton/Number of Cartons -> are copied to the Case Allocation pop-up;
• Cancel button -> after clicking on the button the pop-up is closed without changes;
• Save button -> after clicking on the button the pop-up is closed with changes;
• Save & continue button -> after clicking on the button the pop-up isn’t closed and changes are displayed on IR.

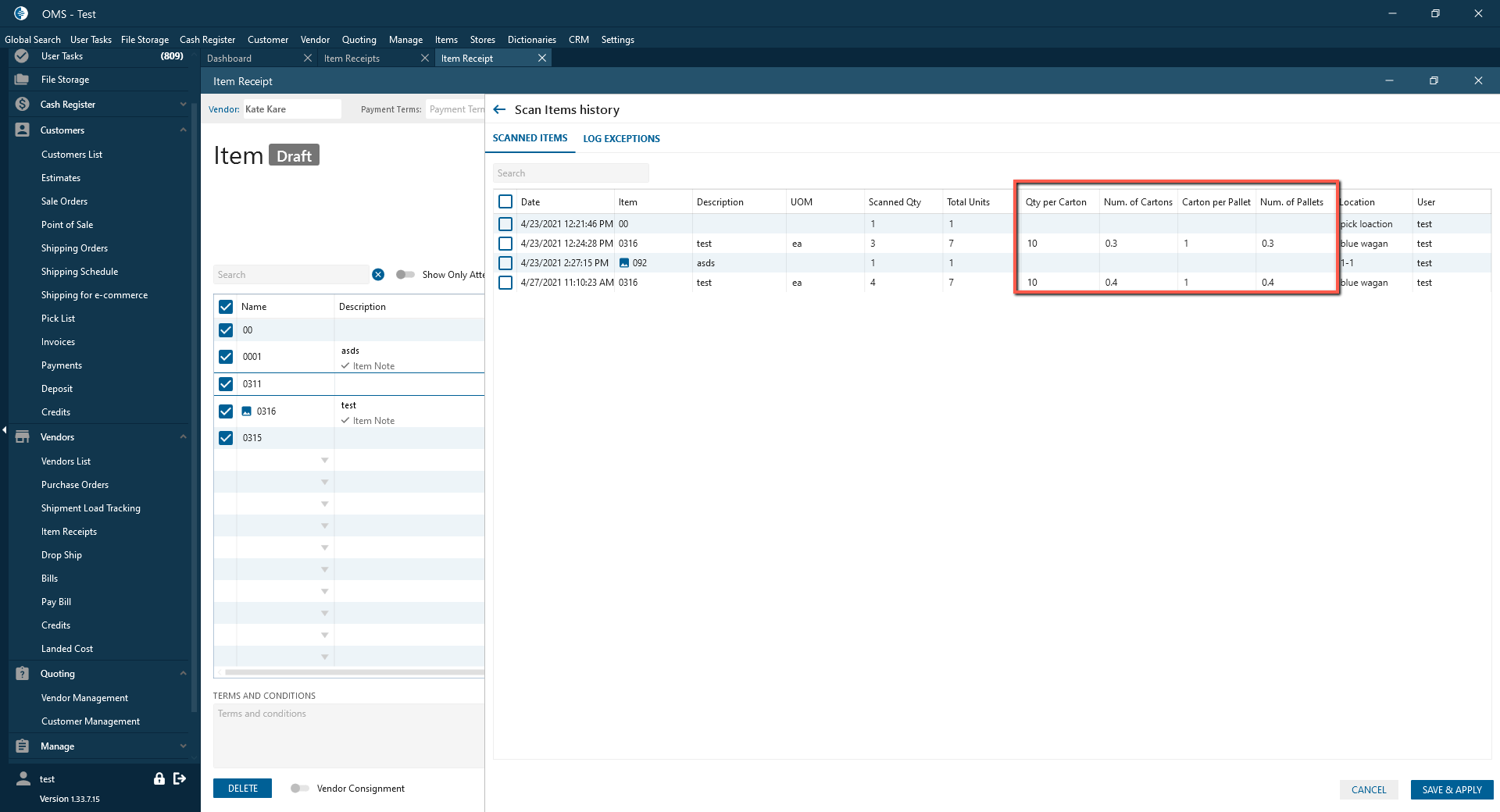

Scan Item History panel changings:

• next columns were added to the panel on the “Scan items” / “View scan logs” tabs:
  1. Qty Per Carton
  2. Num. of Cartons
  3. Carton per pallet
  4. Num. of Pallets
• Columns rules:
  • by default empty;
  • are calculated the same as on IR edit form;
  • once columns have been filled -> after clicking on the Apply Total Units button:
    • all values are copied to the IR Datagrid;
    • Qty per Carton/Number of Cartons -> are also copied to the Case Allocation pop-up.

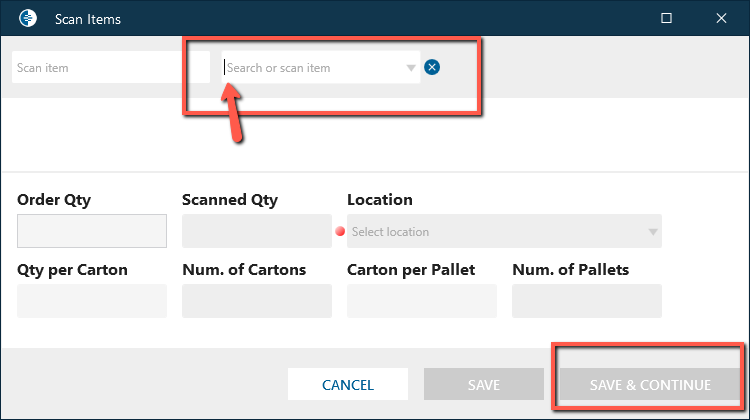

Search or Scan item textbox is added before drop-down. Cursor is in the field by default.

After the scan, the item cursor is moved to the Scanned Qty field.

When user clicks on the “enter” button -> the “Save & Continue” button is pressed and the cursor is back to the “Search or scan” textbox.
