“Marker Wizard” panel on the Sale Order

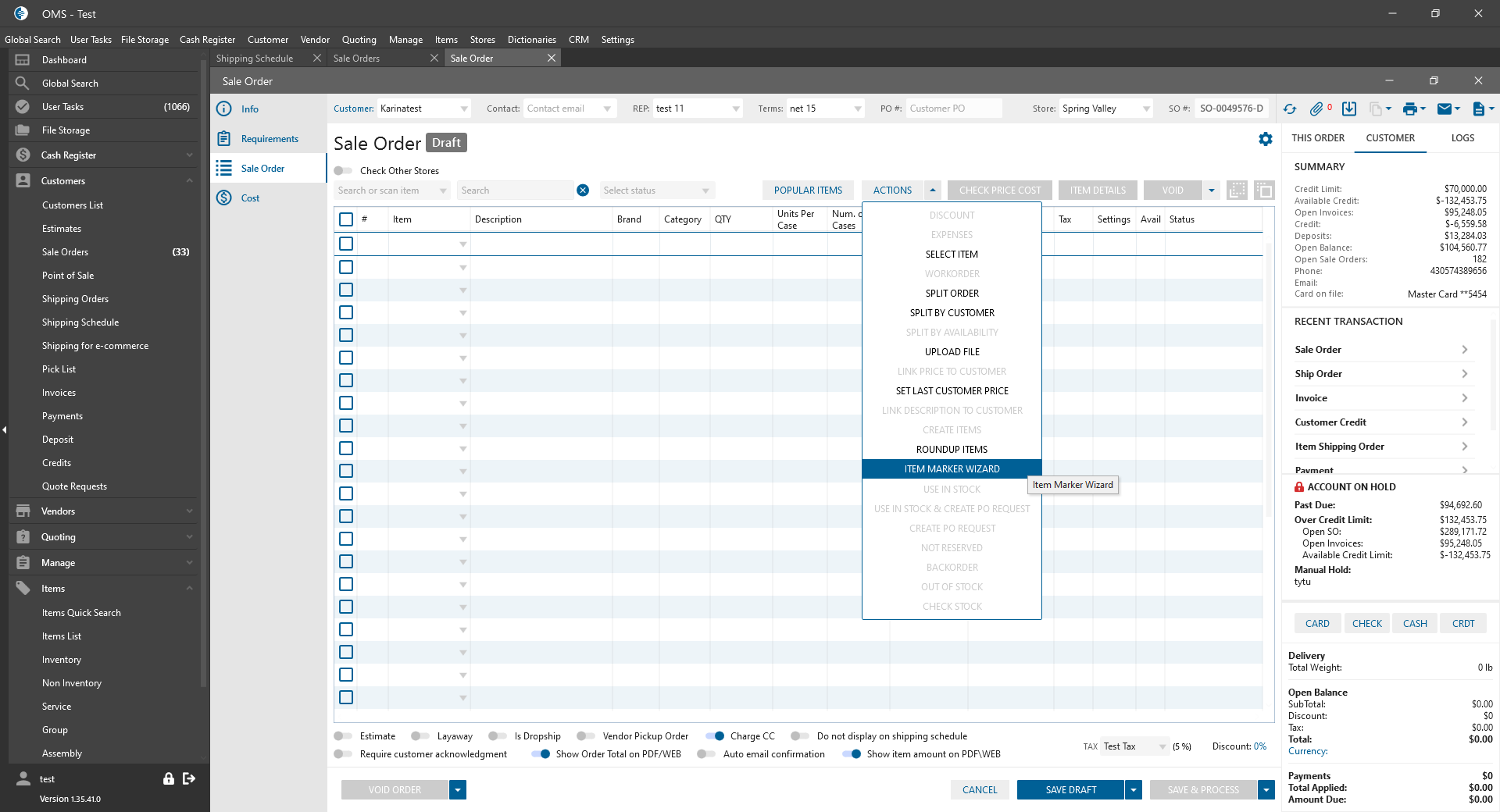

Sale Order edit form -> Actions multi-button:

• “Item Marker Wizard” button:
  • was added next to the “Roundup Items” button;
  • is clickable for Orders in statuses listed below:
    • Request;
    • Draft;
    • Acknowledg. Pending;
    • Credit Hold;
    • Ready to Process;
    • Pending PO;
    • In Process;
    • Ready to Ship;
    • Partial Shipped;
  •  after clicking on the button -> “Marker Wizard” panel is opened;
• “Marker Wizard” panel contains the next elements:
  • Tabs:
    • Item List;
    • Two Dimensions;
  • Add items left panel -> is the same for 2 tabs:
    • “X” button -> after clicking on the button all Dimensions are unselected and all items from the Datagrid are deleted;
    • Item Set dropdown:
      • contains the list of Item Sets in the System;
      • after the set is selected -> Dimensions for this Item Set are displayed;
    • Show items button:
      • if at least one dimension of Item Set is selected -> the button is clickable;
      • after clicking on the button -> items are displayed in the Datagrid on the tabs;
  • Datagrid with the columns:

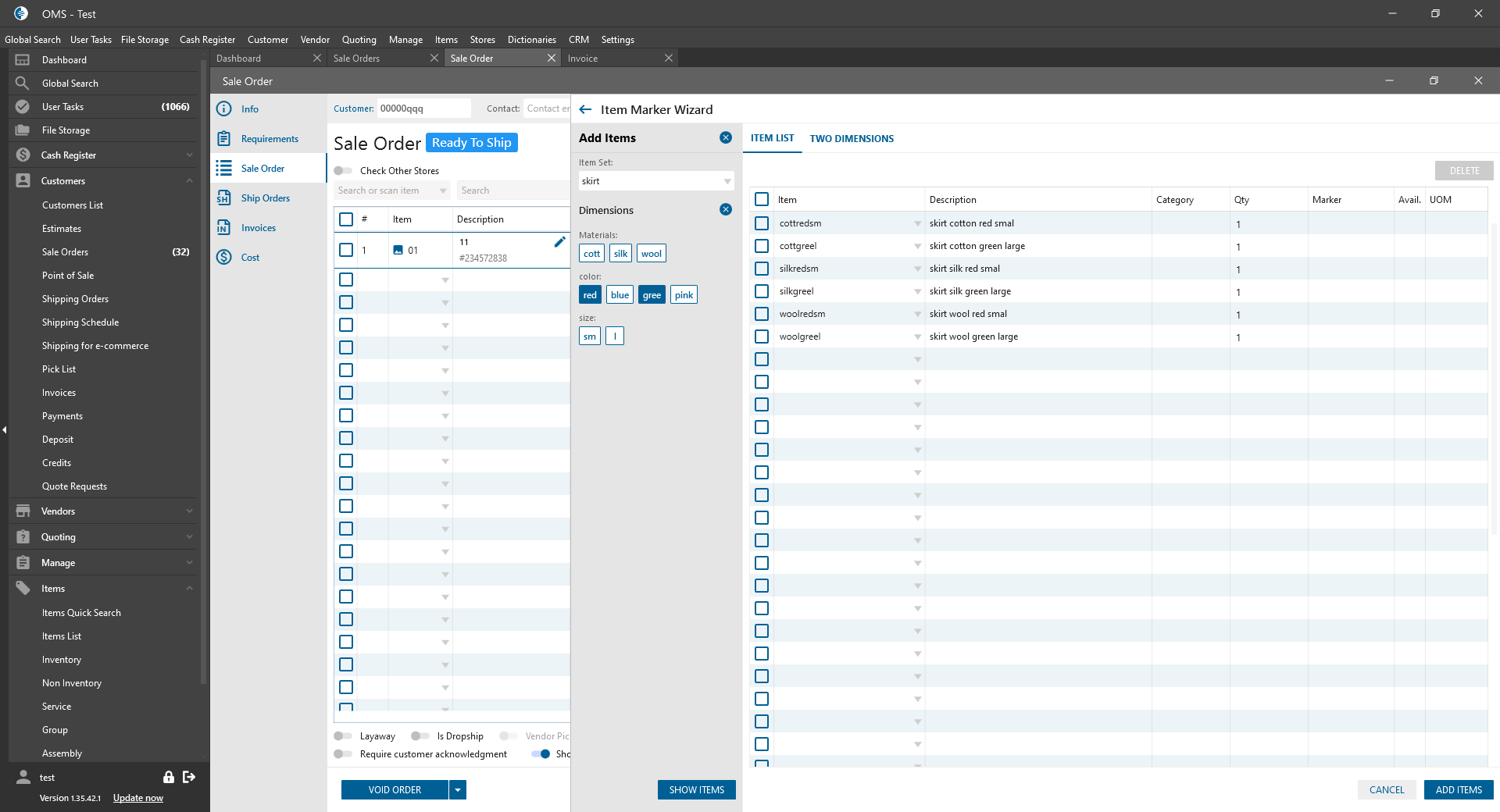

    • Item List tab:
      • Checkboxes with select all button -> after clicking on the button all line items are selected;
      • Item column displays filtered items after the user has selected dimensions. Items are the same as on the Size Chart tab;
      • Description column -> item Description is displayed;
      • Category -> item Category is displayed( if item hasn’t category -> column is empty);
      • Item Qty -> item Qty selected on the Size Chart tab in the Qty tab is displayed. Near the qty is displayed item size;
      • Marker -> the corresponding item Marker is displayed;
      • Available -> item availability is displayed:
        • If the item is in Stock -> a green circle is displayed;
        • If an item Not in Stock -> a red circle is displayed;
      • UOM -> item UOM from an item edit form is displayed. If item without UOM -> column is empty;

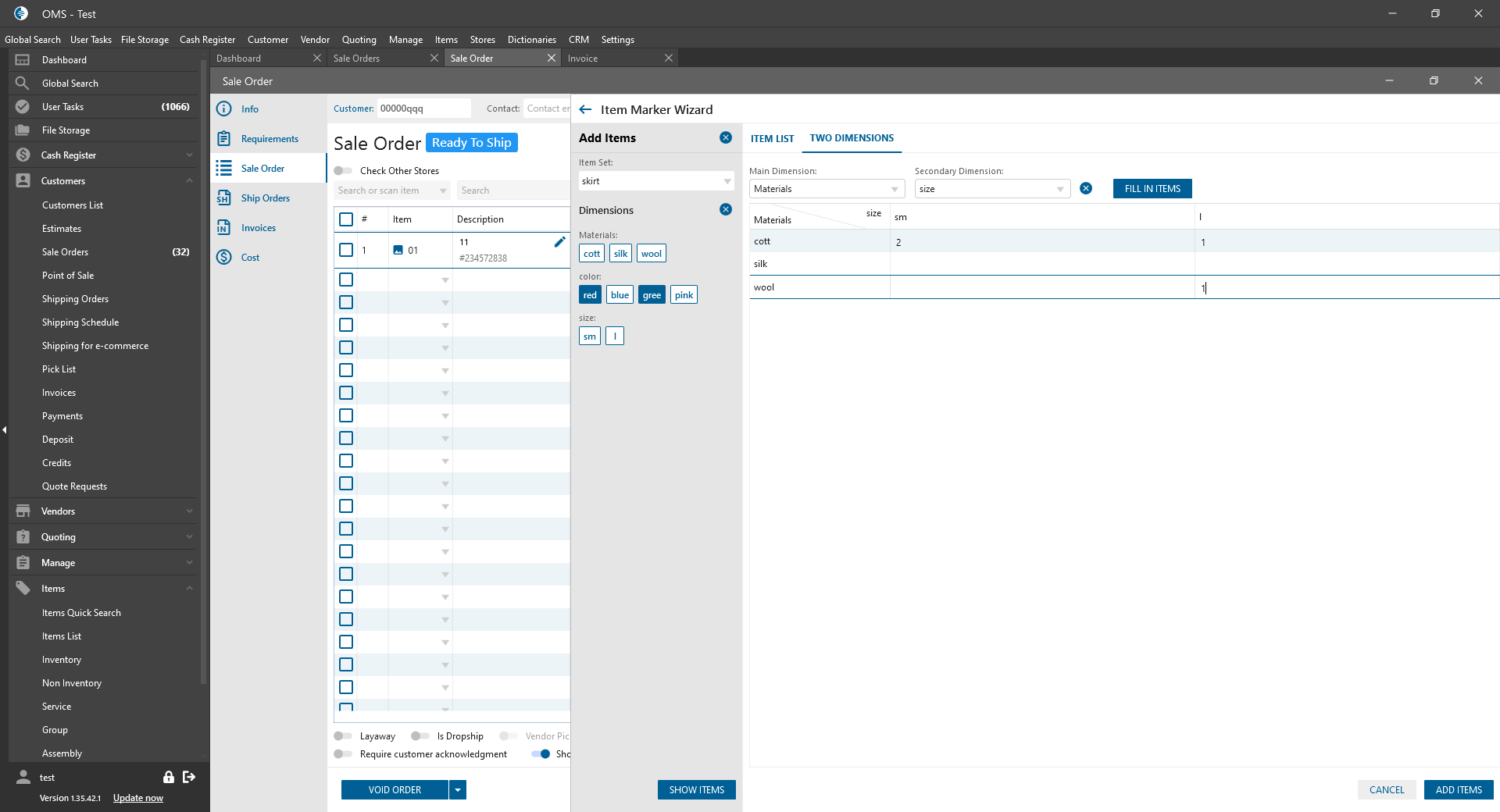

    • Two Dimensions tab:
      • Main Dimension dropdown:
        • contains the list of Dimension Set from the Dictionary;
        • the horizontal column;
      • Secondary Dimension dropdown:
        • contains the list of Dimension Set from the Dictionary;
        • can be selected the same Dimension set as in the Main dropdown;
        • the vertical columns;
      • Fill In Items button:
        • If Qty for the item was selected -> is clickable;
        • After clicking on the button -> item are added to the Item List Datagrid;
  • Buttons -> are the same for 2 tabs:
    • Cancel:
      • is always clickable;
      • after clicking on the button:
        • the panel is closed;
        • items aren’t added to the Sale Order;
    • Add Items:
      • if in the Datagrid displayed at least one item -> button is clickable;
      • after clicking on the button:
        • the panel is closed;
        • items are added to the Sale Order.
